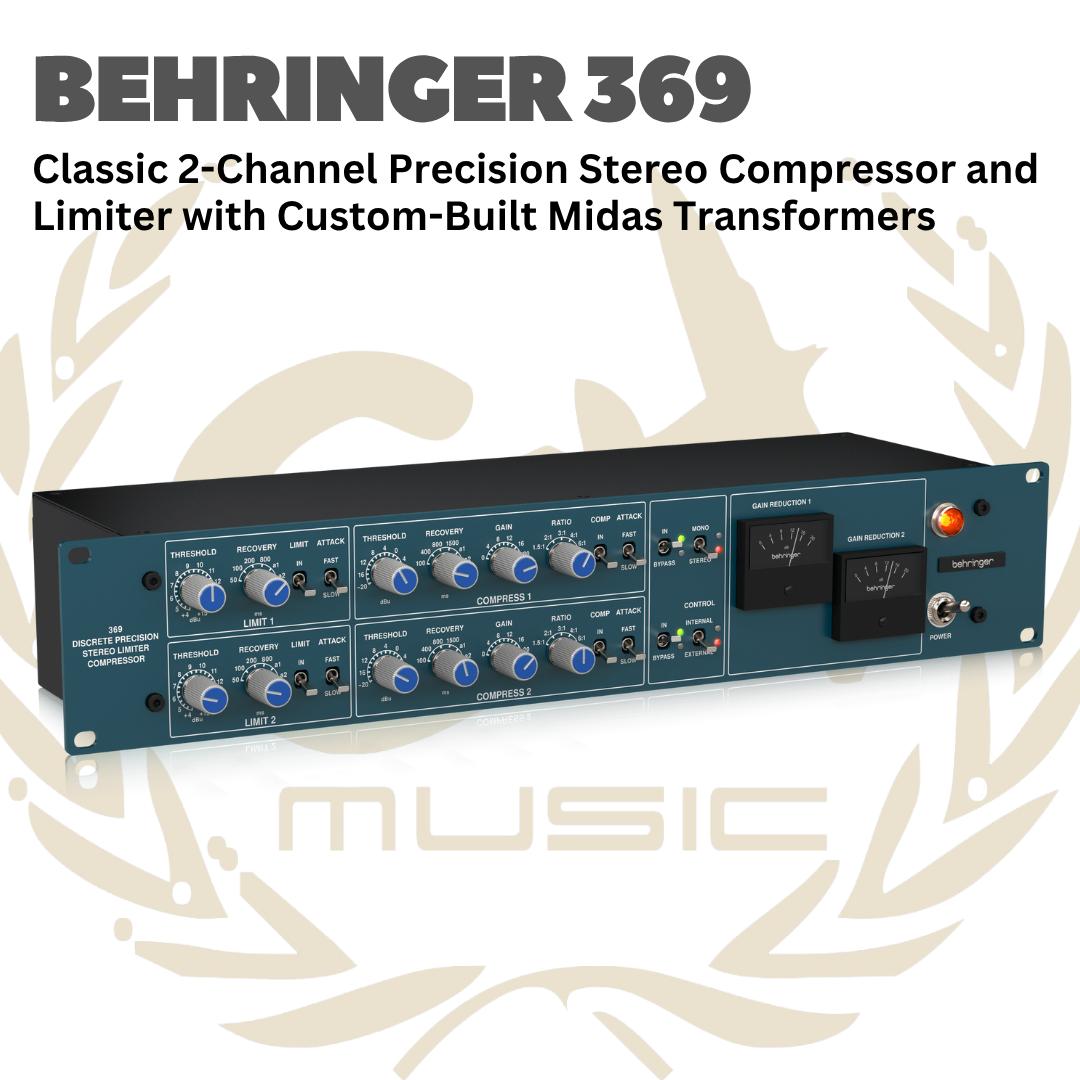

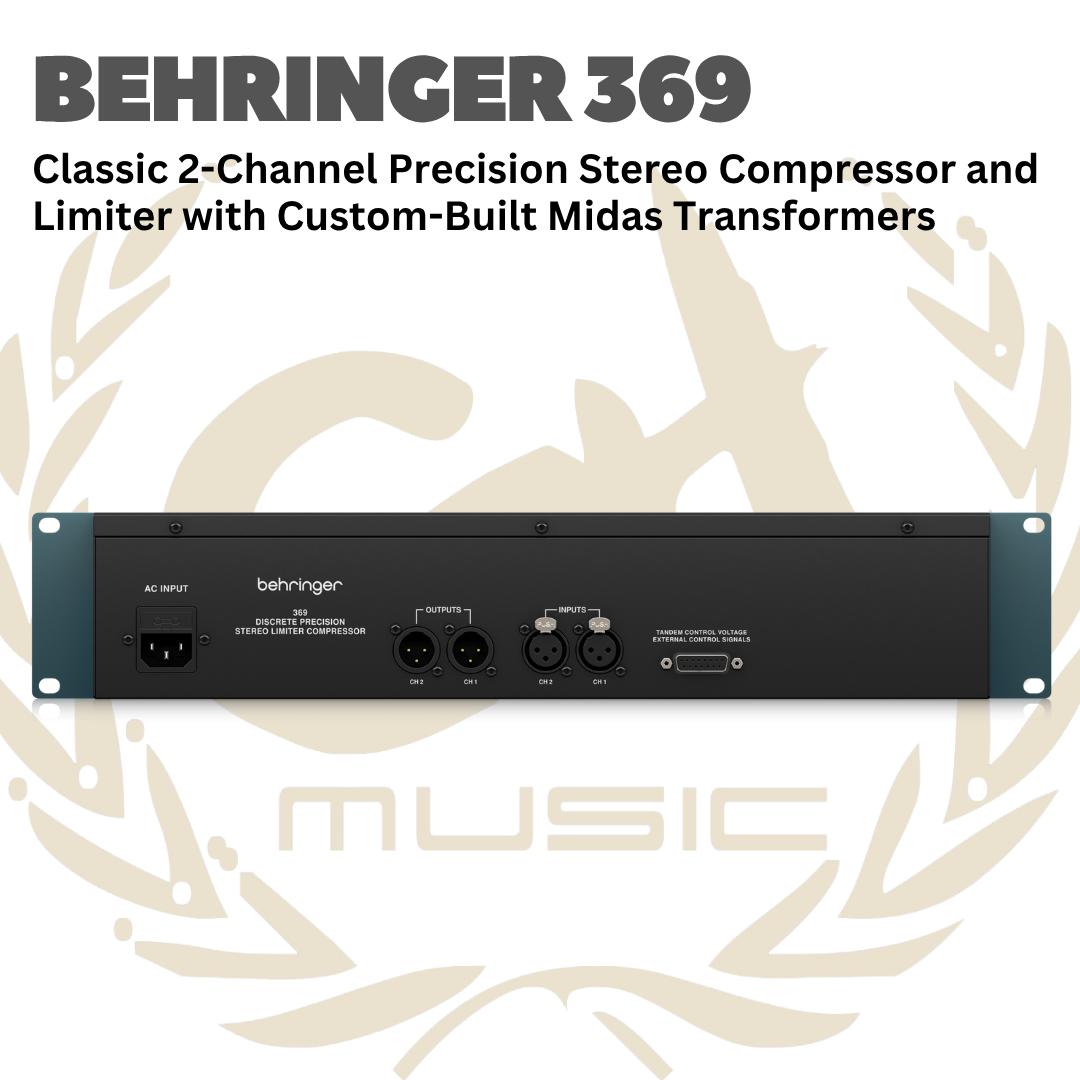

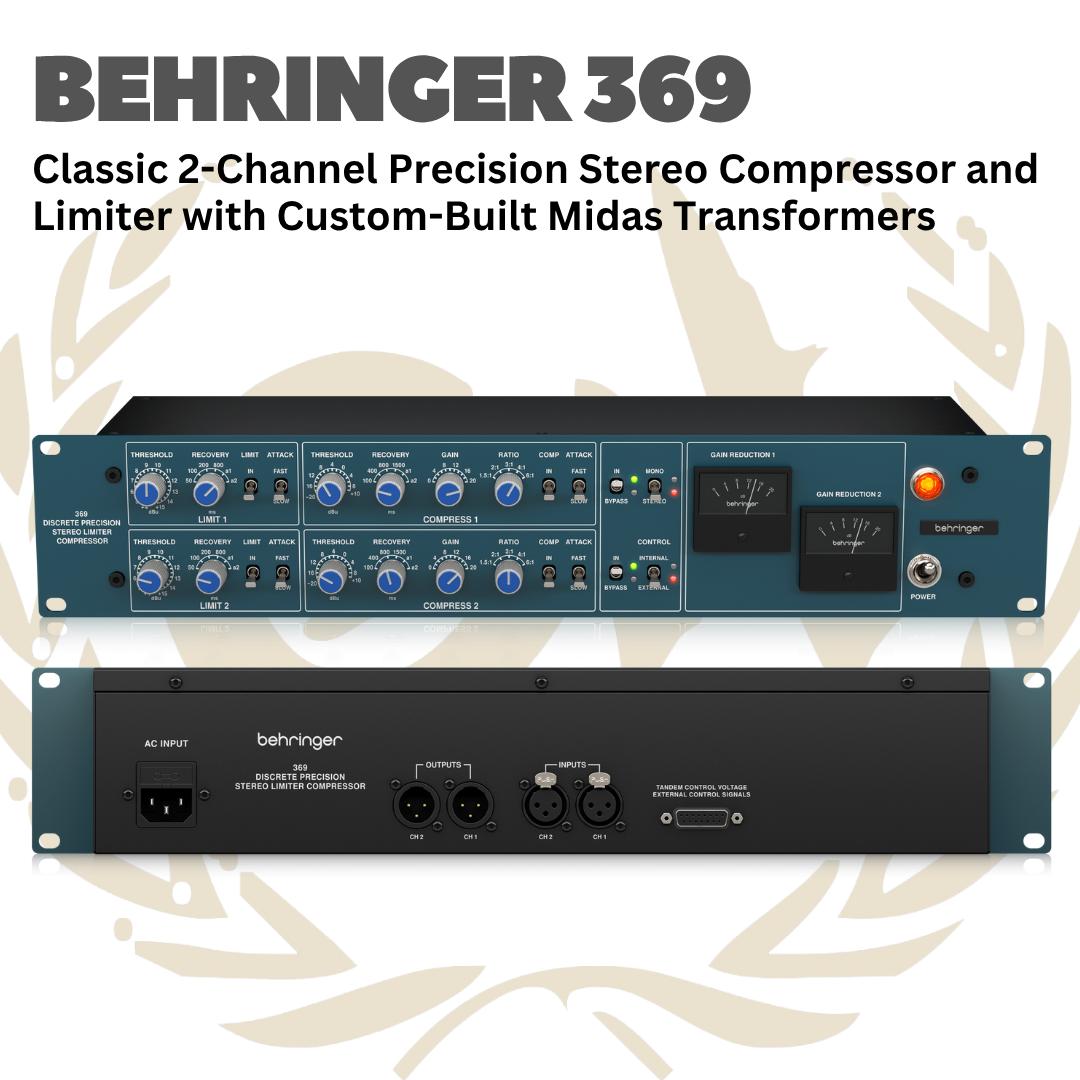

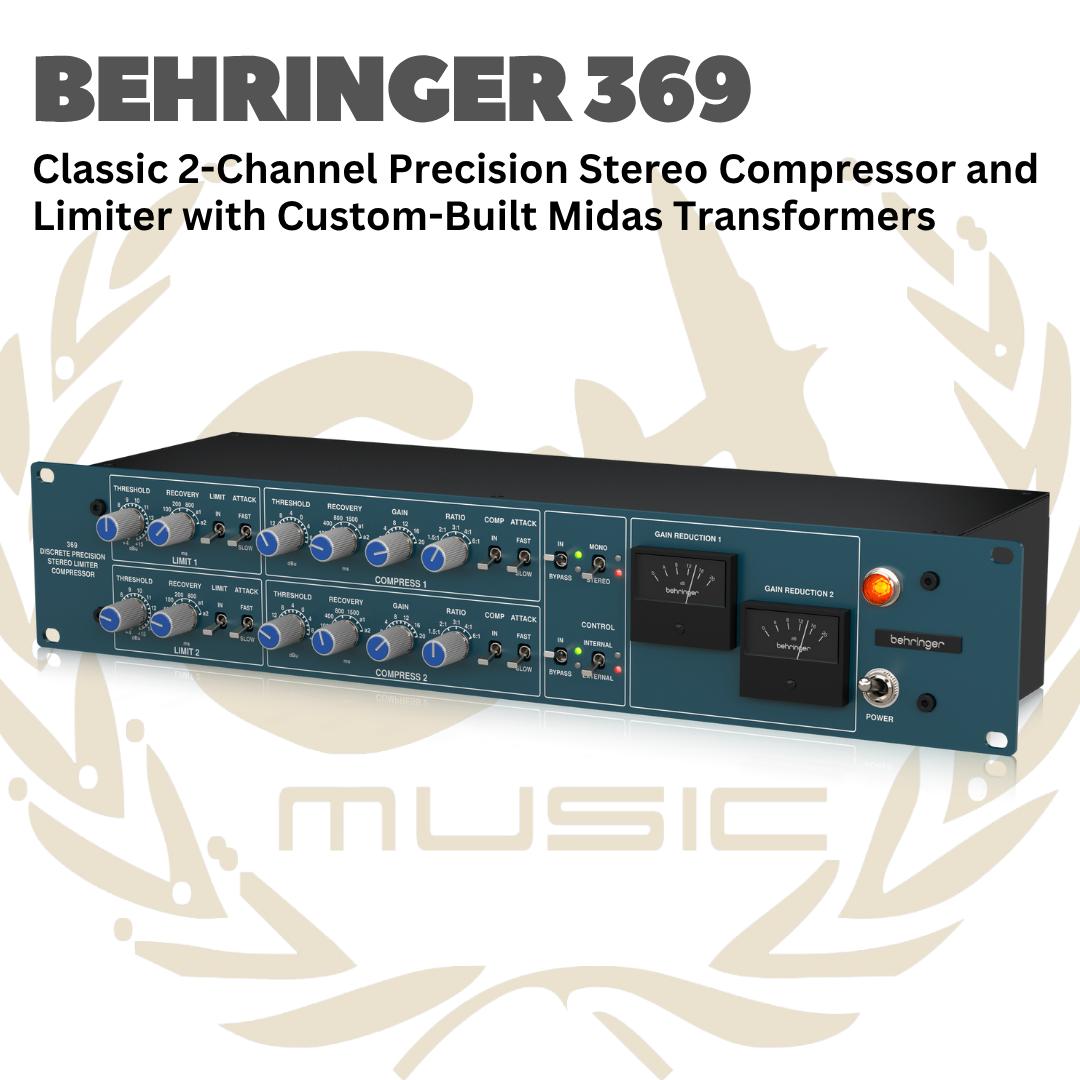

Behringer 369 Classic 2-Channel Precision Stereo Compressor and Limiter with Custom-Built Midas Transformers - Compressor & Limiter Stereo untuk Mic

100% ORIGINAL

-Legendary 2-channel stereo compressor and limiter based on the classic 33609 design

-Custom-built Midas input and output transformers

-Completely discrete signal path, ideal for mixing, mastering and broadcast applications

-Broad selection of compression ratios: 1.5:1, 2:1, 3:1, 4:1, 6:1

-Switchable attack time from slow to fast for each compressor and limiter

-Compressor recovery time: 100 to 1,500 msec with 2 auto-release presets

-Limiter recovery time: 50 to 800 msec with 2 auto-release presets

-Dedicated threshold selector on both compressor and limiter

-Variable makeup gain settings on both compressors for more grit and warmth

-Compressors and limiters can be individually bypassed

-Select between linked stereo mode or as a dual mono compressor

-2 vintage-style gain reduction meters

-Transformer-balanced inputs and outputs on XLR connectors

-Rugged 2U rackmount chassis for durability in portable applications

-Auto-ranging universal switch-mode power supply

Spesifikasi :

-Audio Inputs

Type : 2x XLR, transformer balanced

Impedance : 10 k ohm default / 600 ohm internal option

Max. input level : > +26 dBu

-Audio Outputs

Type : 2x XLR, transformer balanced

Impedence : < 75 ohm balanced

Max. output level : > +26 dBu with 600ohm Load

-System Specifications

Frequency response : 20 Hz to 20 kHz, ±0.5 dB

Distortion (THD+N) : < 0.03%, 50 Hz - 20 kHz, +4 dBu, compressor & gate in, attack = slow

Noise : -79 dBu, 22 Hz - 22 kHz unweighted, compressor & gate in, attack = slow

Circuit : Discrete Class-A

-Limiter

Threshold : 2x Rotary switches, +4 dBu to +15 dBu in 0.5 dBu steps

Recovery : 2x Rotary switches, 50 ms, 100 ms, 200 ms, 800 ms, a1 100 ms – 2 s, a2 50 ms – 5 s

Limit in/out : 2x Toggle switches

Attack fast/slow : 2x Toggle switches, Fast = 2 ms. Slow = 4 ms

-Compressor

Theshold : 2x Rotary switches, +4 dBu to +15 dBu in 0.5 dB steps

Recovery : 2x Rotary switches, 100 ms, 400 ms, 800 ms, 1500 ms, a1 100 ms – 2 s, a2 50 ms – 5 s

Gain : 2x Rotary switches, 0 dB to +20 dB in 2 dB steps

Ratio : 2x Rotary switches, 1.5:1, 2:1, 3:1, 4:1, 5:1

Comp in/out : 2x Toggle switches

Attack fast/slow : 2x Toggle switches, Fast = 3 ms. Slow = 6 ms

Gain reduction meters : 2x Analogue meters, 0 dB to 20 dB

-Controls

Bypass/In : 2x Toggle switches, true relay bypass

Mono/stereo : Toogle switch, stereo mode links the sidechains together.

Internal/external : Toogle switch, internal = local switch control, external = remote control

External control connector : 15 pin female D connector for remote control of bypass, mono/stereo. Sidechain link
