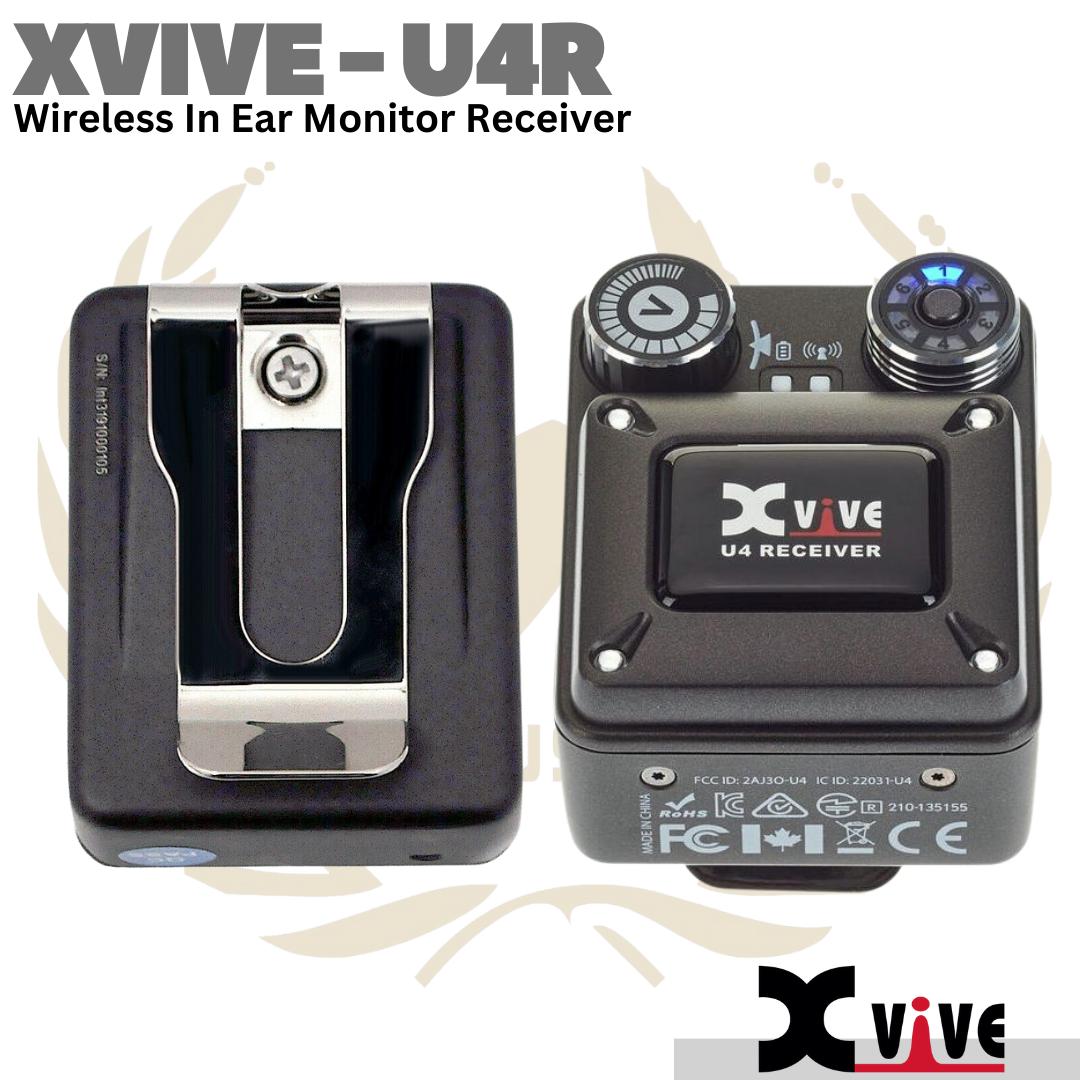

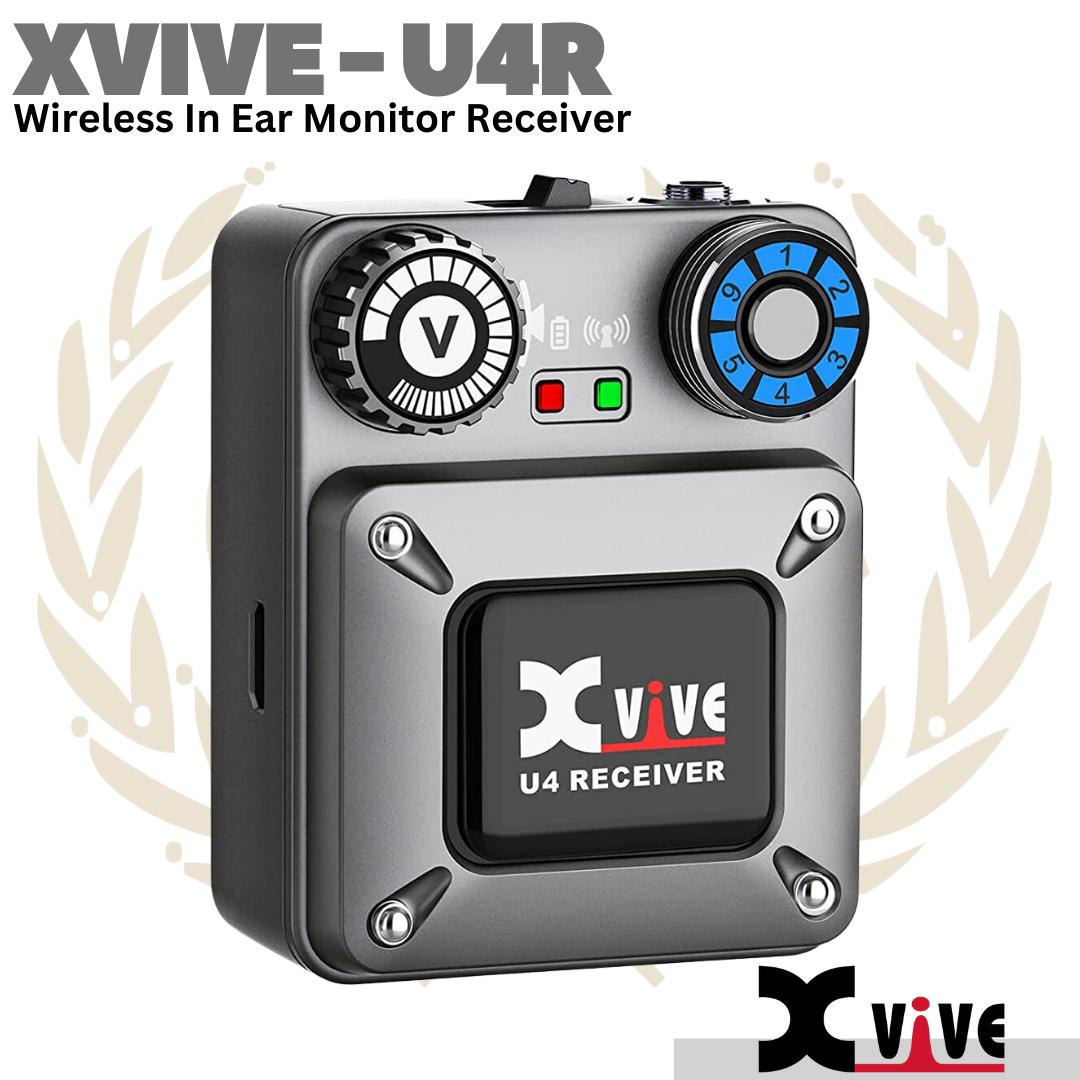

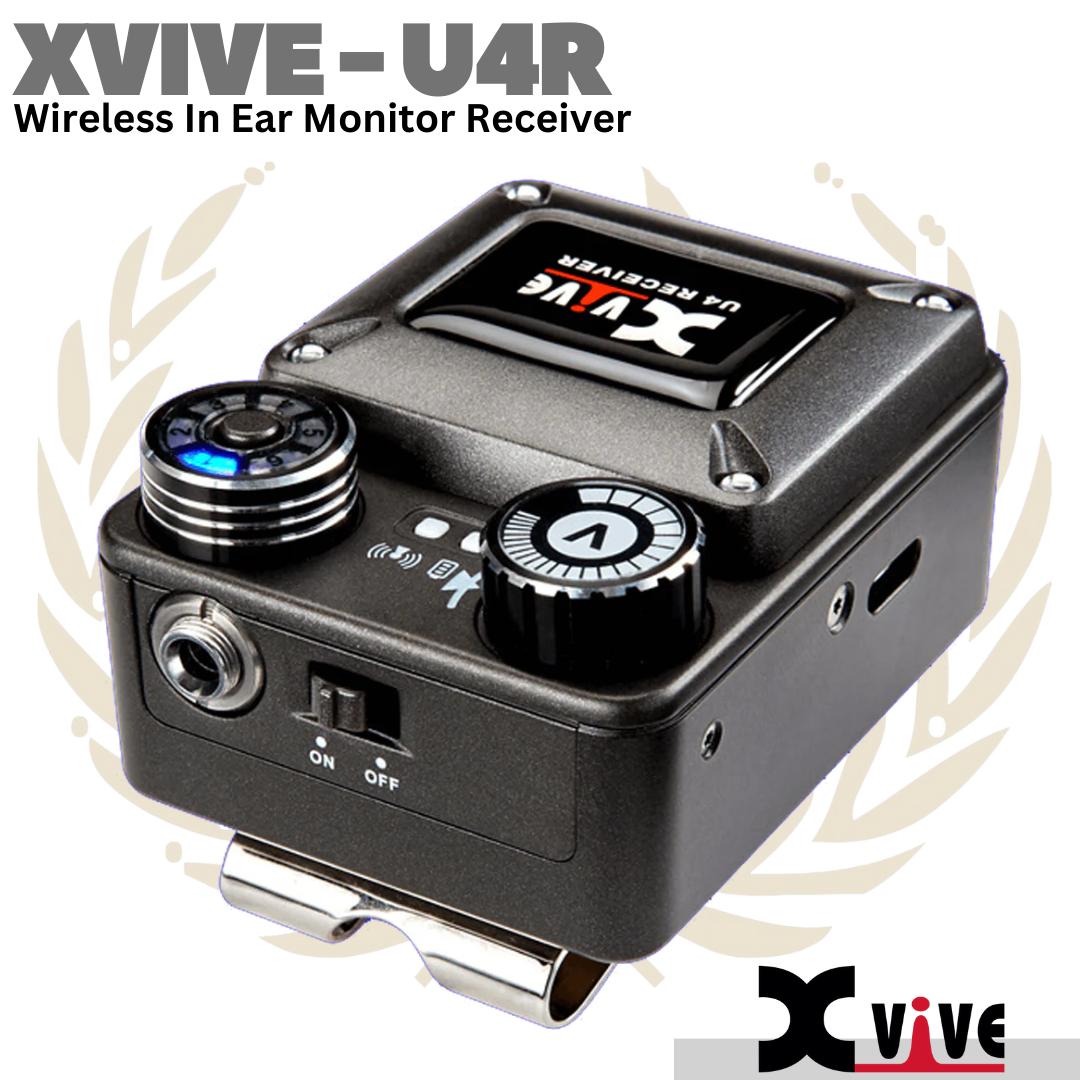

XVIVE U4R Wireless In Ear Monitor Receiver

XV-U4R 2.4GHz wireless in-ear monitor receiver only.

*The XV-U4 transmitter is required for use.

*When monitoring one type of sound, multiple receivers can be connected to one transmitter. (There is no connection limit.)

■Features

・simple setting

・lightweight and compact design

・robust metal body receiver

・Simple and stylish

・Highly functional yet cost-effective

・6-channel specification

■Specifications

Usable Frequency Band: 2.4GHz ISM Worldwide (2400 -2483.5MHz)

Frequency response: 20Hz -20KHz (-3dB)

Dynamic range: 107dB

Receive sensitivity: -88dBm

Total harmonic distortion: 0.2%

RF output power: 10mW E.I.R.P.max

Operating temperature: -18°C to 57°C * However, it varies depending on battery specifications.

Latency: < 5ms

Concurrent channels: 6

Maximum transmission distance: approximately 27m (The actual transmission distance varies depending on the environment such as reflection, interference, and absorption of radio waves.)

Driving Time: Approximately 5Hours (Rechargeable Lithium Battery/Rechargeable Time: Approximately 2.5Hours)

*Earphones are not included.

■U4 Receiver

Size: 1.85 in x 1.61 in x 2.36 in (47 x 41 x 60 mm) , 118 g

Material: Plastic molding, cast metal

Battery: 3.7V rechargeable Li-Ion, 1200mA

Impedance: 6 -600ohms

Audio out connector: 3.5mm stereo out

Mode: Maximum output level 2.8Vp-p

Driving time: about 5hours (when fully charged)

Antenna impedance: 50Ω

Antenna type: 1/4Wave Sleeve Dipole, Non-removable
