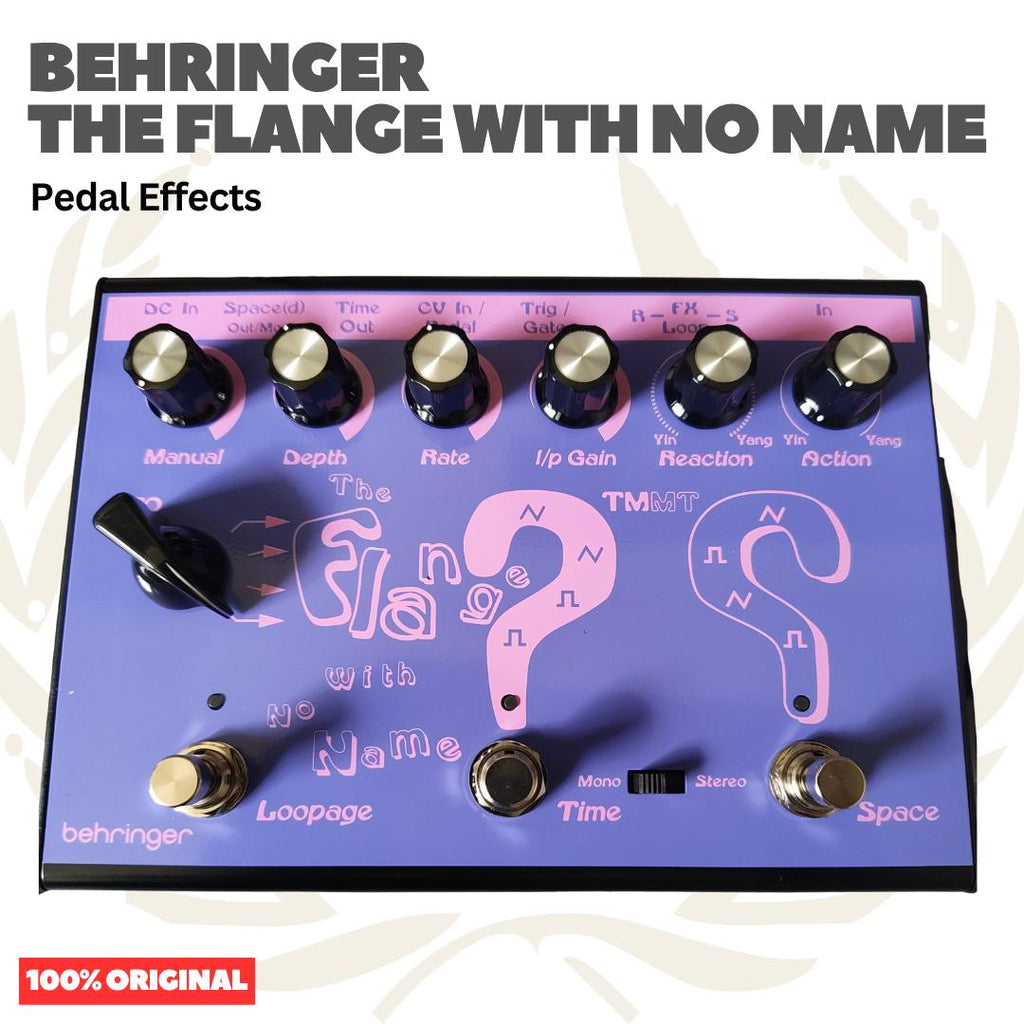

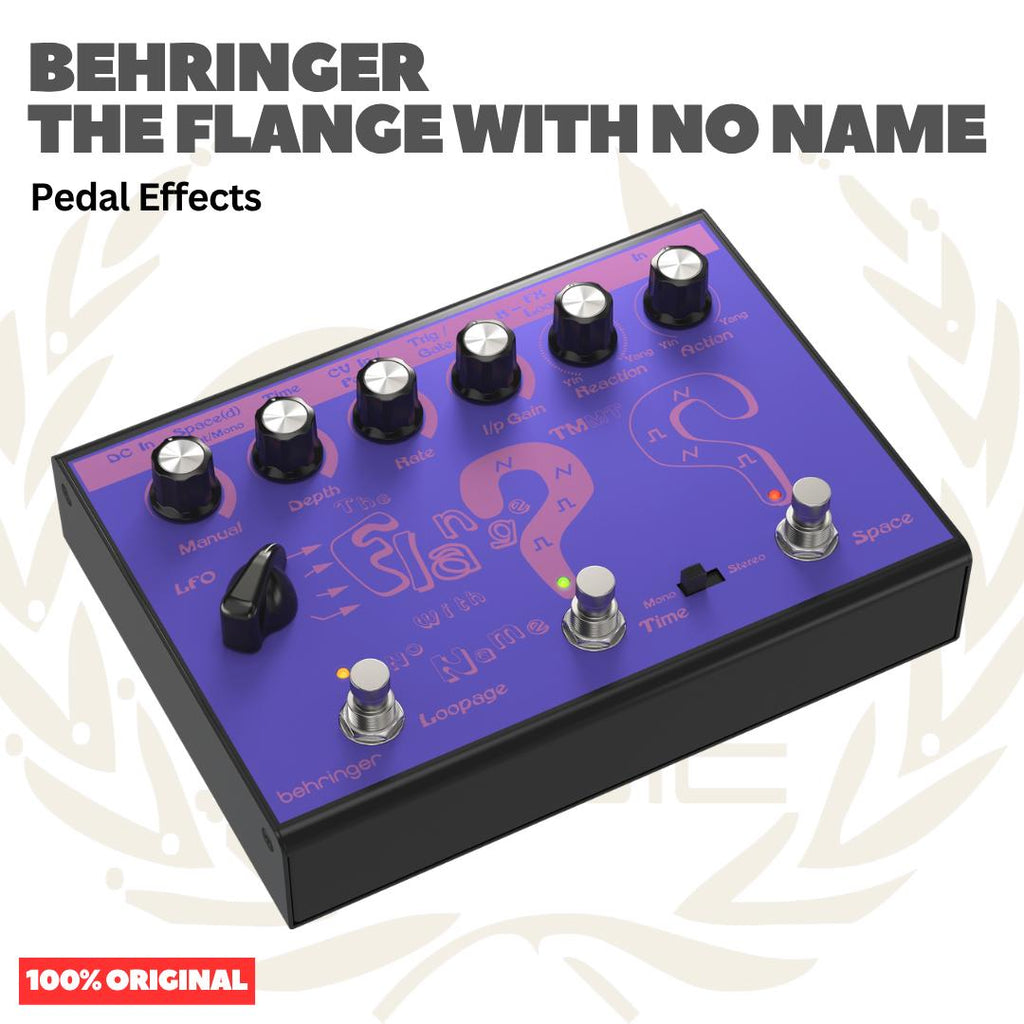

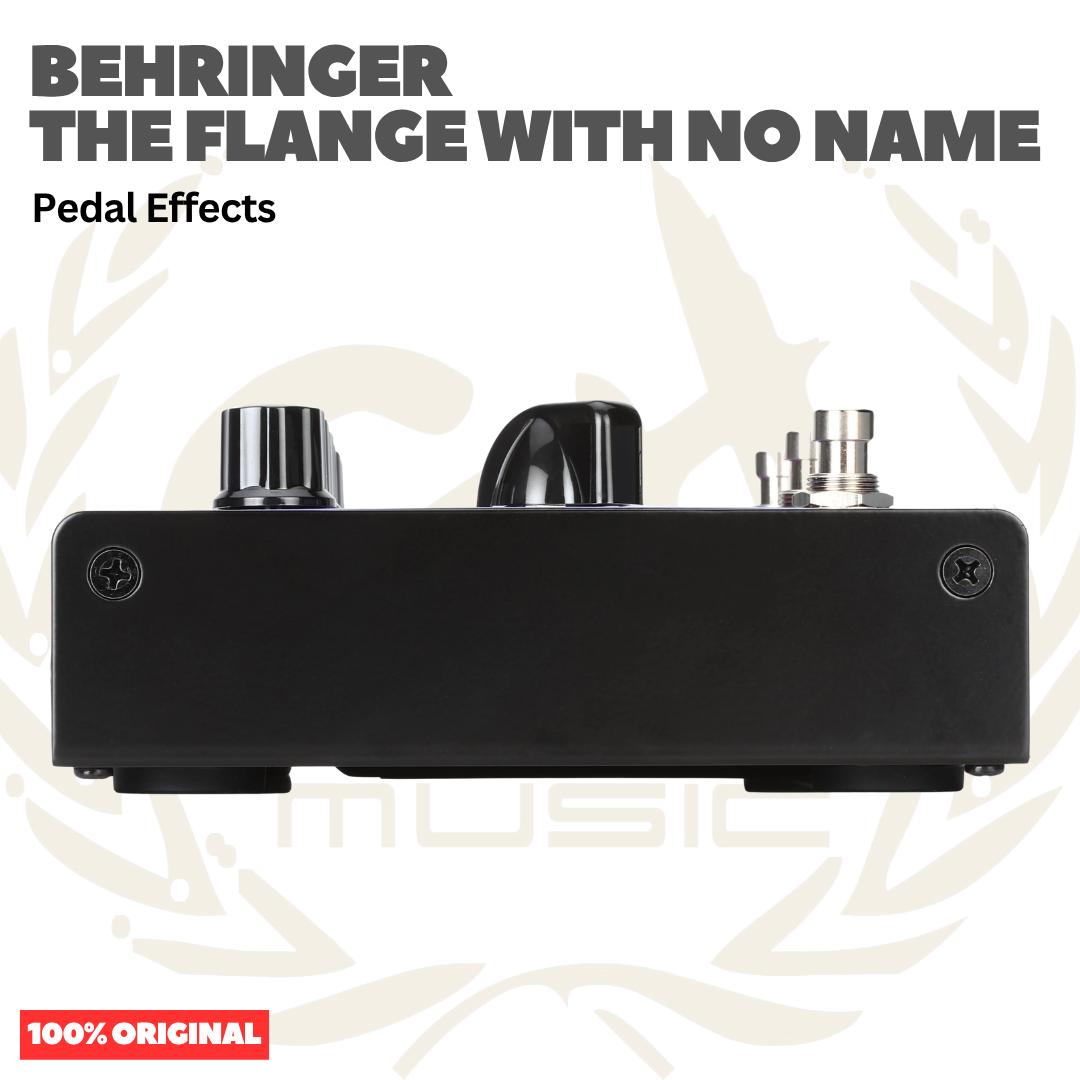

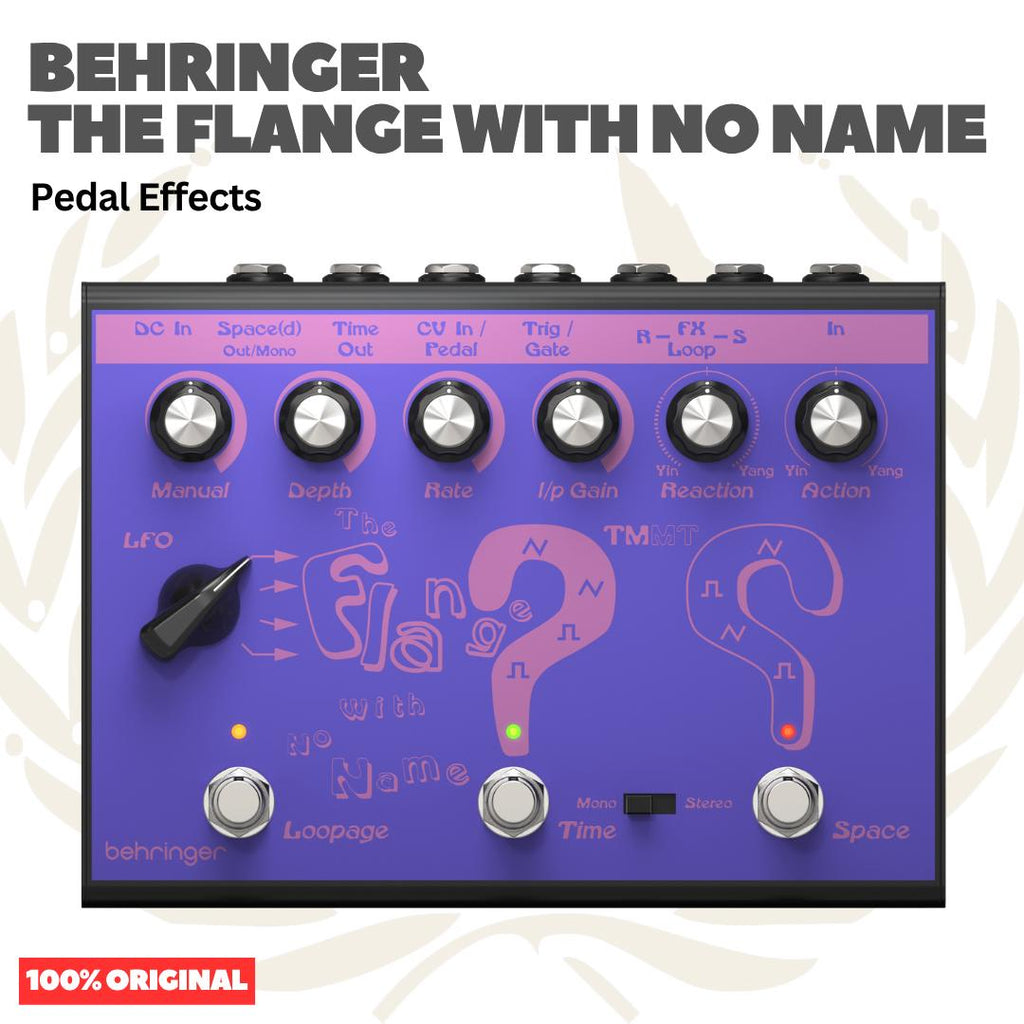

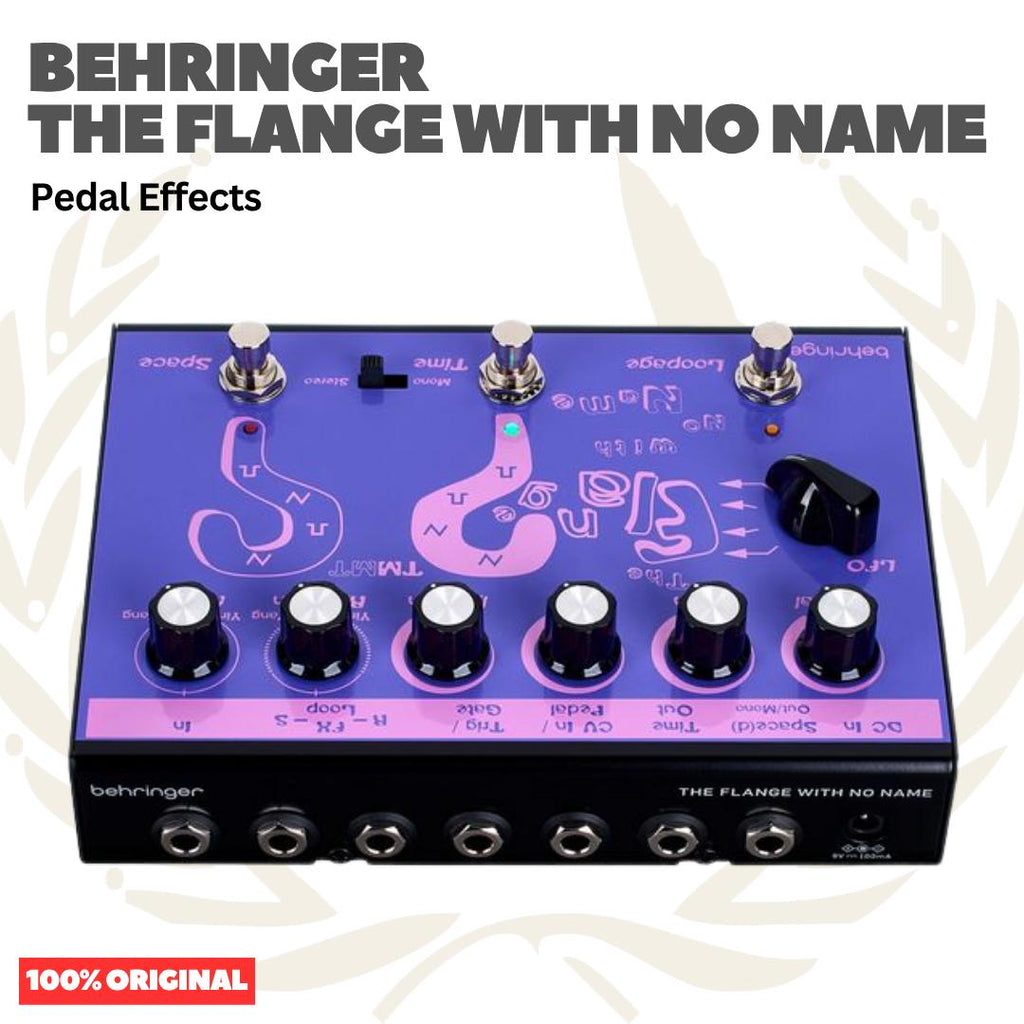

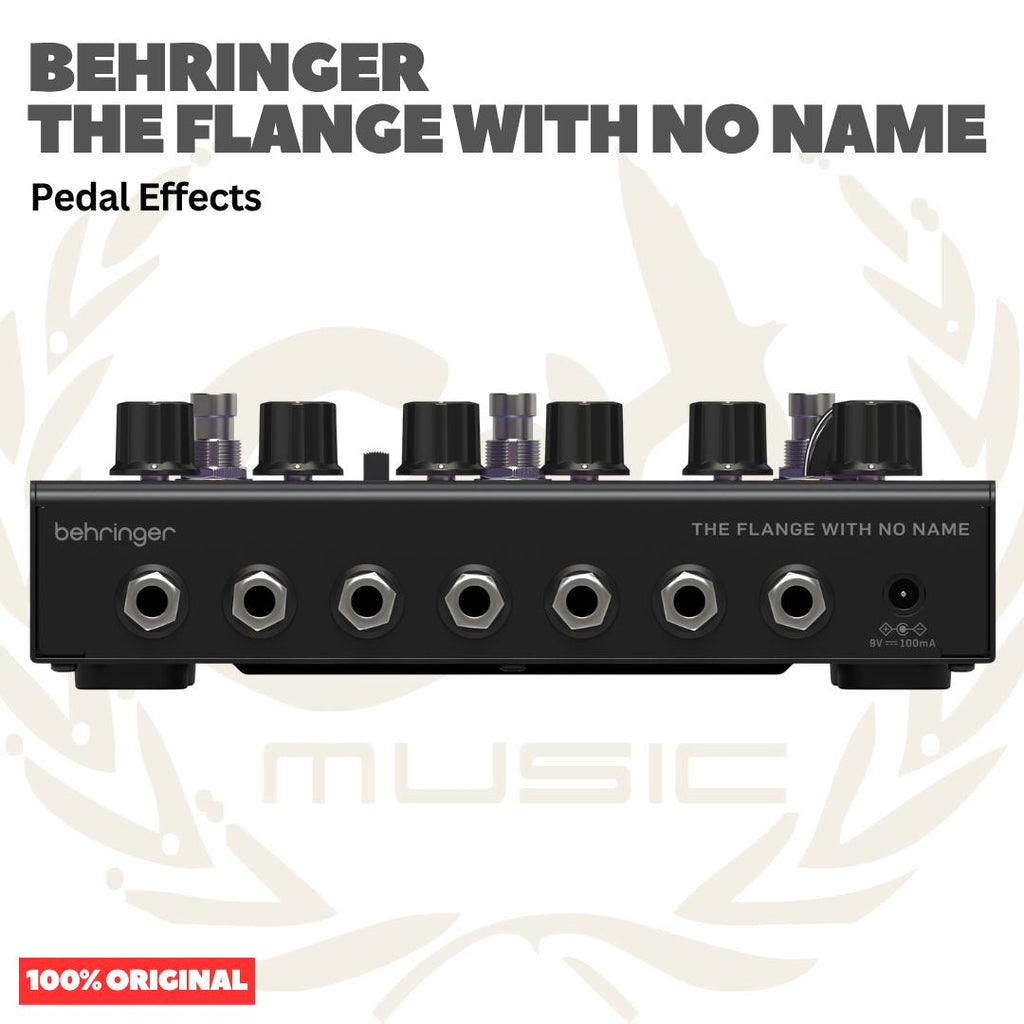

Behringer The Flange With No Name Pedal Effects - Efek Pedal Gitar

Behringer The Flange With No Name Pedal Effects - Efek Pedal Gitar

Beyond-Standard Flanging - Delivers the classic jet-plane and swooshing flanger tones, then pushes far beyond into phasing, chorusing, vibrato, tremolo and even self-oscillation. This gives you a single modulation pedal that can cover subtle movement, lush ambience and extreme experimental textures alike.

Dual Signal Paths With FX Loop - Uses separate dry and delay paths to create rich phase interaction and depth, while the built-in FX loop lets you insert other pedals into the modulated path. This enables complex, evolving sounds and creative routing options that are ideal for sound design and advanced pedalboard setups.

Analogue Circuitry And True Bypass - Employs analogue technology for warm, organic modulation with a musical feel, and features true bypass switching to keep your core tone pristine when the effect is disengaged. Perfect for players who demand both characterful colour and clean signal integrity.

Extensive Control And CV Connectivity - Depth, Rate, Manual, I/P Gain, Reaction, Action and multiple rotary switches give you fine control over every aspect of the effect. CV In/Pedal and Trig/Gate connections expand performance possibilities, allowing external modulation, expression control and integration with synths or modular systems.

Flanger

Newly designed flanger in the style of the 90s

Fully analogue flanger with vintage sound

Controls: Manual, Depth, Rate, Up Gain, Reaction, Action

Switch: LFO, Mono/Stereo, LED: Effect On

Footswitch: Loopage, Time, Space

Input: 6.3 mm jack

Output: 6.3 mm jack

Power adapter connection: Barrel connector socket 5.5 x 2.1 mm, negative pole inside

Power supply with a 9 V DC mains adapter

Audio Connections

Input: 1 x 1/4" TS, unbalanced

Input impedance: 1 Mohm

FX loop (send / return): 1 x 1/4" TRS, unbalanced

FX loop output impedance: 470 ohm

FX loop input impedance: 42 kohm

Output mono: 1 x 1/4" TS, unbalanced

Output impedance: 1.5 kohm

Control Connections

CV In/Pedal: 1 x 1/4" TRS, unbalanced

CV In/Pedal impedance: 800 kohm

CV In/Pedal input range: 0 V to +5 V

Trig/Gate: 1 x 1/4" TRS, unbalanced

Trig/Gate impedance: 26 kohm

Trig/Gate input range: 0 V to +5 V

Controls

Manual: 1 x rotary knob

Depth: 1 x rotary knob

Rate: 1 x rotary knob

I/P Gain: 1 x rotary knob

Reaction: 1 x rotary knob

Action: 1 x rotary knob

LFO: 1 x rotary switch

Loopage: 1 x rotary switch

Time: 1 x rotary switch

Space: 1 x rotary switch

System

Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)

Dynamic range: > 80 dB

Signal-to-noise ratio: > 82 dB

Overall gain: +12 dB

Power

Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)

Power consumption: 0.7 W

Dimensions And Weight

Dimensions (H x W x D): 60.7 x 200.1 x 148.5 mm (2.4 x 7.9 x 5.9")

Weight: 1.10 kg (2.38 lbs)
